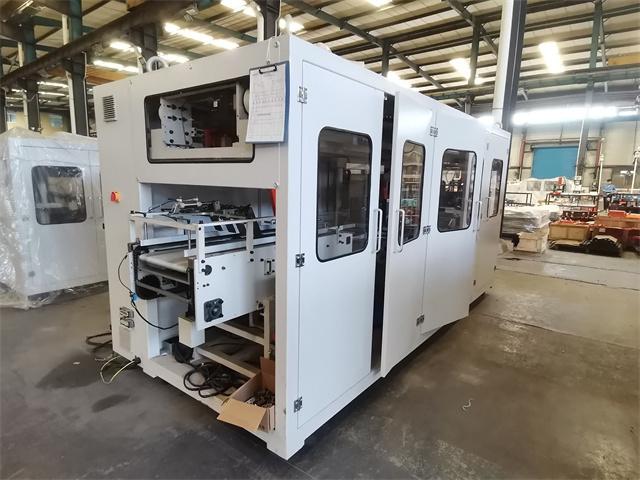

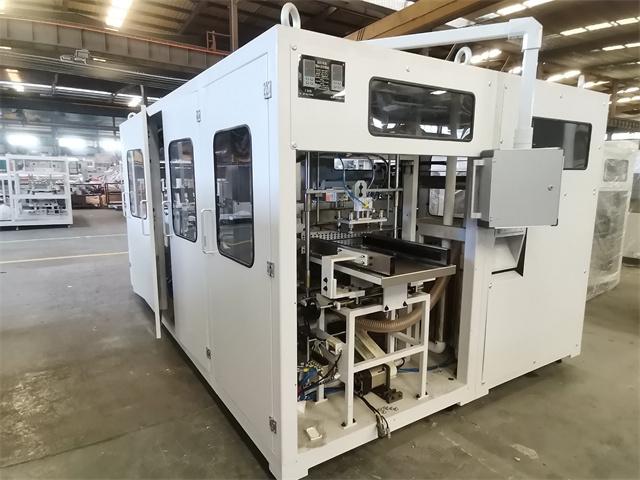

Name: TP-B30RE Toilet Paper Kitchen Roll Towel Bag Wrapping Packing Machine
Brand: IMAKO

YOUR POSITION：HOME > Machines > Toilet Paper Rolls Packing Machine >

TP-B30RE Toilet Paper Kitchen Roll Towel Bag Wrapping Packing Machine

Price: Negotiable
Model Number: TP-B30RE
Power: 25KW
Application: Single Packed/Unpack Core/Coreless Roll Paper
Weight: 3400KG
Output: 22 Pack/Min
Packaging dimension: Length (L): 300-690 Width (W): 160-440 Height (H): 80-280 mm
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

★Adopts servos control for tissue arrangement, counting, filling preparation, tissue fill to bag, bag catching, bag conveying. This machine is easy to operate and maintain.

★Adopts central vacuum management mode, can efficiency lower power consumption.

★Adopts intelligent sealing system, alternating current control, up & down independent temperature control, can meet different kinds of packaging materials, ensure nice sealing and stably running.

★Equipped with functions of waste bag free stop automatic rejection, air source management, fault alarm and display, servo overload protection.

TP-B30RE main parameter configuration
Specification\Model\ ltem	TP-B30REV、TP-B30REM
Scope of Application	Core、coreless roll paper
Feeding type	ASF auto double lanes feeding system
Design speed	22 packs/min
Stable speed	20packs/min(relate to product size)
Gusset type	Vacuum forming mould
Cut off modo	lnsert & cut
Bag storage structure	Dual bag racks
Bag storage qty	600 bags
Bag material	PE film
Compressed air(MAP)	Pressure O.6MPA Flow 30l/min
Power supply	380V/50HZ
Total motor power(KW)	19
Machine weight (KG)	3400
Bag type	premade bag
Servo control shaft nos	10
Electrical control system	VEICHI,MITSUBISHI
Temp.system	YUDILAN
Pneumatic system	SMC.AlRTAC
Optional device	lnk code printer.thermos transfer printer

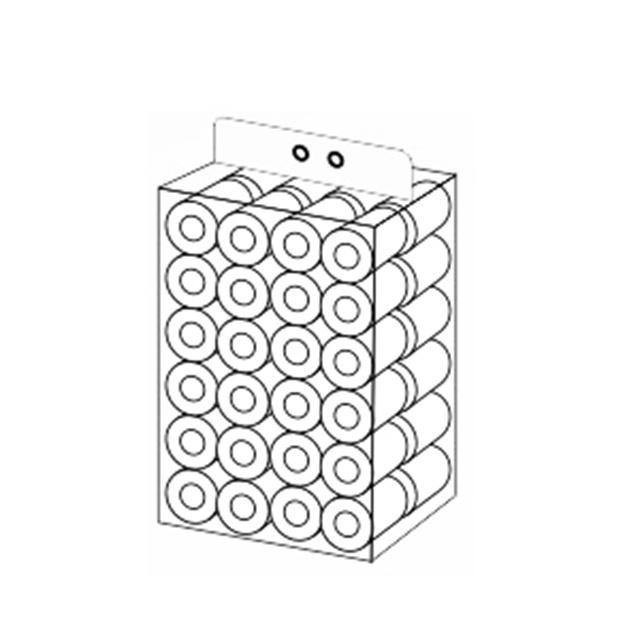

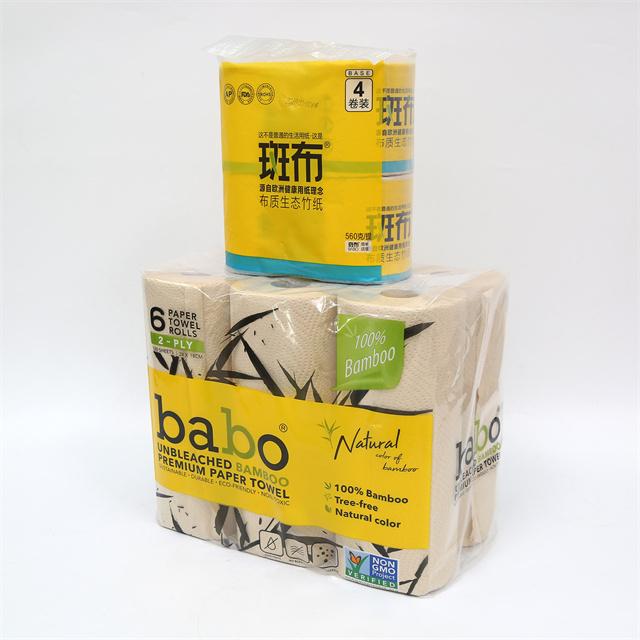

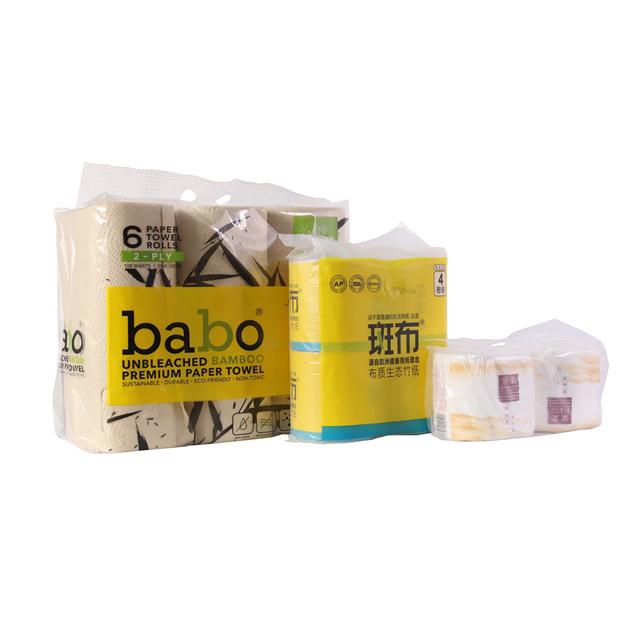

TP-B30RE series automatic roll paper bundle packing machine is suitable for automatic bundle packing single packed/unpack core/coreless roll paper.


Equipped with functions of waste bag free stop automatic rejection, air source management, fault alarm and display, servo overload protection.

Products Categories

Related Products

More》

Toilet Paper Wrapping Machine Roll Towel Bag Packing Machine Kitchen Roll Bag Packing Machine

TP-B30RE Toilet Paper Kitchen Roll Towel Bag Wrapping Packing MachineMain Parts

Film Frame

The Film Frame is an important component of the toilet roll packing machine. It is used to support and hold the film that is used to wrap the toilet rolls.It is typically made of metal or plastic, and it is designed to be sturdy and durable. attached to the machine frame, and it is positioned in a way that allows the film to be easily stretched and wrapped around the toilet rolls.

Speed Reducer

The speed reducer is typically located between the electric motor and the gearbox, and it works by reducing the rotational speed of the motor while increasing the torque. This allows the machine to operate at a slower speed, which is necessary for the efficient movement of the rollers and other components.

Film-cutting knife holder

The Film-cutting knife holder is usually designed with a specific angle and position, which helps to ensure that the blade makes a straight and accurate cut. It is also designed to be easily adjustable, which allows for different sizes and shapes of film to be used as needed.

Film Dragging Rollers

The Film Dragging Rollers are an important component of the toilet roll packing machine. They are used to pull the film across the surface of the toilet rolls and ensure that the film is tightly wrapped around the rolls. The Film Dragging Rollers are also designed to be adjustable, which allow
