Name: TP-B30RY Toilet Paper Roll Bundler Bundling Packing Machine
Brand: IMAKO

91插插插影_日本免费一区二区三区四区_啪啪中文字幕_精品国产乱码久久久久久精东_亚洲日韩中文第一精品_91精品啪在线观看国产足疗

YOUR POSITION：HOME > Machines > Toilet Paper Rolls Packing Machine >

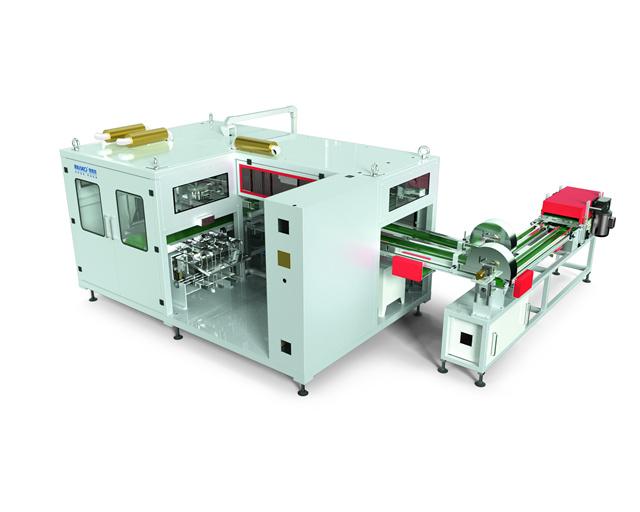

TP-B30RY Toilet Paper Roll Bundler Bundling Packing Machine

Price: Negotiable
Model Number: TP-B30RY
Power: 23.7kw
Application: Coreless Flat Roll Paper and Core/Coreless Round Roll Paper
Weight: 3400KG
Output: 22Bag/min

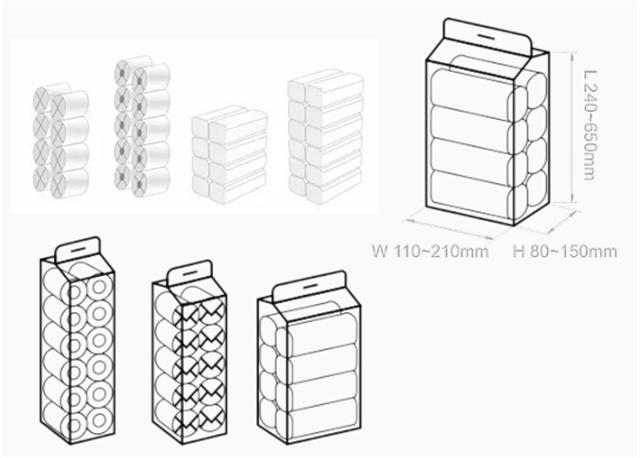

Packaging dimension: Length (L): 240-650 Width (W): 110-210（s type110-420） Height (H): 80-150 mm
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

★This machine adopts PLC and 16 shafts servo movement controller for controlling unit, realize servo controlling for product conveying, flatting, counting, bag catch, bag open, tissue fill to bag and sealing.

★This machine can dual use for automatically bundle packing both coreless flat roll paper and core/coreless round roll paper. Easy to swift.

★Adopts vacuum forming mould for sealing part, ensure nice packaging effect.

★Fault self-diagnosis and alarm, can find out the faults and it’s position quality and will auto display on the touch, easy for trouble shouting and machine maintenance.

★Monitoring system: Detect both bags and paper to avid machine running without bag or without product. Will discharge the bag automatically when bag malposition. Auto stop when bag opening abnormal.

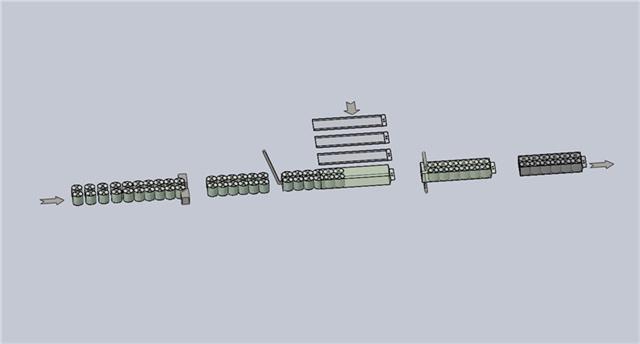

★Adopts double lanes feeding，auto roll paper flatting. Flatting degree can be adjusted freely, sharfe forming nice. Flatting roll paper and round roll paper swift can be realize by cylinder up/down controlling.

TP-B30RYmain parameter configuration
Specification/Model /ltem	TP-B30RYV、TP-B30RYM
Scope of application	Coreless flat roll paper
Feeding type	Auto double lanes feeding
Design speed	25 packs/min
Stable speed	18-22 packs/min
Packaging material install structure	Dual bag racks
Bag storage qty	≤600
Packaging style	2x4、2×5、2×6
Machine weight(KG)	4500

Bag style	Pre-bag
Bag material & thickness	PE/0.04-0.05mm
Air compression (MPA)	0.6
Flow(umin)	300
Electrical control system	VEICHIMITSUBISHI
Temp.control system	YUDIAN
Pneumatic system	SMC/AIRTAC
Servo control shaft nos	11
Optional device	Ink printer,thermos transfer printer
Optional function	Flat roll/round roll used packing


Toilet Roll Packing Machine

Equipped with functions of bag open protection function, waste bag free stop automatic rejection, air source management, fault alarm and display, servo overload protection.overload protection.

TP-B30RY 5.jpg


Products Categories

Related Products

More》

Toilet Paper Bundler Toilet Paper Bundling Packing Machine Toilet Paper Roll Bag Packing Machine

TP-B30RY Toilet Paper Roll Bundler Bundling Packing MachineMain Parts

Film Dragging Rollers

The Film Dragging Rollers are an important component of the toilet roll packing machine. They are used to pull the film across the surface of the toilet rolls and ensure that the film is tightly wrapped around the rolls. The Film Dragging Rollers are also designed to be adjustable, which allow

Electric motors

The electric motors used in toilet roll packing machines are typically selected based on the specific requirements of the machine. Factors such as the speed, torque, and power output needed to drive the various components are all taken into consideration when selecting the motor.

Speed Reducer

The speed reducer is typically located between the electric motor and the gearbox, and it works by reducing the rotational speed of the motor while increasing the torque. This allows the machine to operate at a slower speed, which is necessary for the efficient movement of the rollers and other components.

Conveyor Timing Belt

The Conveyor Timing Belt is a type of belt that is specially designed to transfer power from the motor to the rollers of the machine. It is responsible for driving the rollers that move the toilet rolls through the machine. The Conveyor Timing Belt is typically made of materials such as rubber or polyurethane, which are known for their durability, flexibility, and resistance to wear and tear.

TP-B30RY Toilet Paper Roll Bundler Bundling Packing MachineRelated Quality Control

Assembly

Imako have strict assembly processes in place to ensure that each machine is built to the highest standards. This includes testing and inspection at each stage of the assembly process.

Performance testing

We conduct rigorous performance testing on each machine to ensure that it meets the required specifications. This includes testing for speed, accuracy, and reliability.

Material inspection

Imako use high-quality materials to build TP-B30RY Toilet Paper Roll Bundler Bundling Packing Machine, and they inspect each component to ensure that it meets the required standards.

Supplier Management Team

The goal of our supplier management team is to effectively monitor the timely and high-quality delivery of suppliers, improve process control, promote synergy and common progress between suppliers and the company.
