Name: TP-R220 Full Automatic Toilet Tissue Paper Roll Packaging Machine
Brand: IMAKO

YOUR POSITION：HOME > Machines > Toilet Paper Rolls Packing Machine >

TP-R220 Full Automatic Toilet Tissue Paper Roll Packaging Machine

Price: Negotiable
Model Number: TP-R220
Power: 15.2KW,380V/60Hz
Application: Single core and coreless toilet paper rolls
Weight: 1800KG
Output: 200 Packs/Min
Packaging dimension: Length (L): 80-220 Diameter(D) 80-130 mm
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

Main performance and structure features
1. Double transducer control, easy maintained, decreasing abrasion with long life.

2. human-machine operation, convenient and quick parameter setting.

3. Self diagnosis failure function, clear failure display.

4. High sensitivity optical electric color mark tracking AND digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.

8. All the controls are achieved by software, convenient for function adjusting and upgrading.

TP-R220 main parameter configuration
Design packing speed	220packs/min
Stable packing speed	≤200 pack/min	relate to product size
Maximum flm width(mm)	430
Cutter configuration	Double cutters
Film install structure	Air shaft
Machine weight(KG)	1800
Machine noise(db)	≤78dB
Percentage of pass	≥97%
Efficiency	≥85%
Power supply	380V/60Hz
Packaging film material	BOPP、Spp
Film thickness	0.018-0.03

Suitable for packing roll paper, such as roll tissue, code applying paper and cash register paper etc.

Max. Work Speed:

200Pack/min

Total Power:

12KW

Pack Range(mm):

Length (L): 80-220

Diameter (D): 80-130

General function

Link conveyor system, auto monitor in feed rolls flow, machine auto-stop for limited rolls, rolls auto arrange and feed function, auto stop for abnormal operation and no facial tissue condition, auto alarm and stop for no film, film cutting position electronic auto adjust function, auto-memory and keep parameters function, main machine jog and separated action function, side-sealing part separated action function, whole machine linkage and emergency stop function, whole machine cycle stop and auto display defaults function.

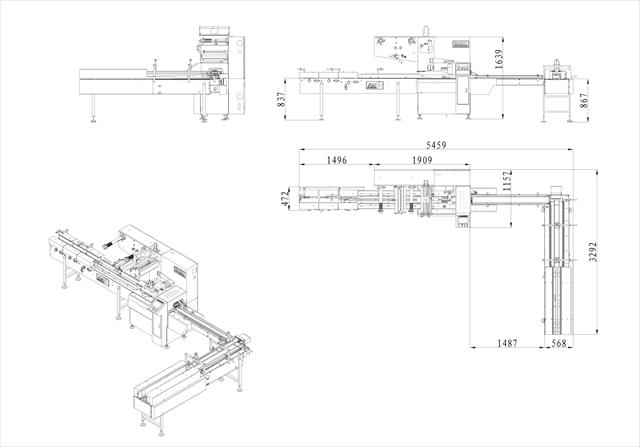

downLoadImg (1).png

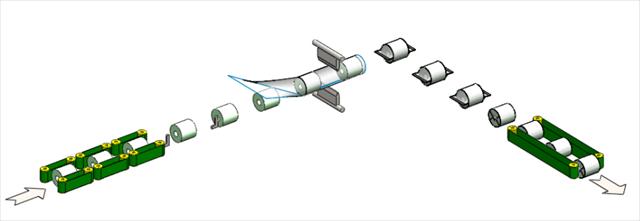

packing procedure.png

Products Categories

Related Products

More》

Toilet Paper Packing Machine Toilet Tissue Packaging Machine Toilet Roll Packing Machine

TP-R220 Full Automatic Toilet Tissue Paper Roll Packaging MachineMain Parts

Electric motors

The electric motors used in toilet roll packing machines are typically selected based on the specific requirements of the machine. Factors such as the speed, torque, and power output needed to drive the various components are all taken into consideration when selecting the motor.

Film Frame

The Film Frame is an important component of the toilet roll packing machine. It is used to support and hold the film that is used to wrap the toilet rolls.It is typically made of metal or plastic, and it is designed to be sturdy and durable. attached to the machine frame, and it is positioned in a way that allows the film to be easily stretched and wrapped around the toilet rolls.

Speed Reducer

The speed reducer is typically located between the electric motor and the gearbox, and it works by reducing the rotational speed of the motor while increasing the torque. This allows the machine to operate at a slower speed, which is necessary for the efficient movement of the rollers and other components.

Conveyor Timing Belt

The Conveyor Timing Belt is a type of belt that is specially designed to transfer power from the motor to the rollers of the machine. It is responsible for driving the rollers that move the toilet rolls through the machine. The Conveyor Timing Belt is typically made of materials such as rubber or polyurethane, which are known for their durability, flexibility, and resistance to wear and tear.
