YOUR POSITION:HOME > Machines > Tissues Packing Machine >

TP-T450 tissue paper converting machine

Price: Negotiable
Model Number: TP-T450
Power: 12.42
Application: Facial Tissue,V Fold Wipes, Napkins, Non-Woven Fabric, Dust-Free Paper
Weight: 3000
Output: 180 Packs/Min
Packaging dimension: L(95~210) /W(80~100) /H(30~100)
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote


TP-T450 main parameter configuration

Scope of application

Facial tissue, V fold wipes, napkins, Non-woven fabric, dust-free paper

Power supply

380V/50Hz

Feeding mode

ASF multi - stage intelligent feeding system

Total power (KW)

12.42

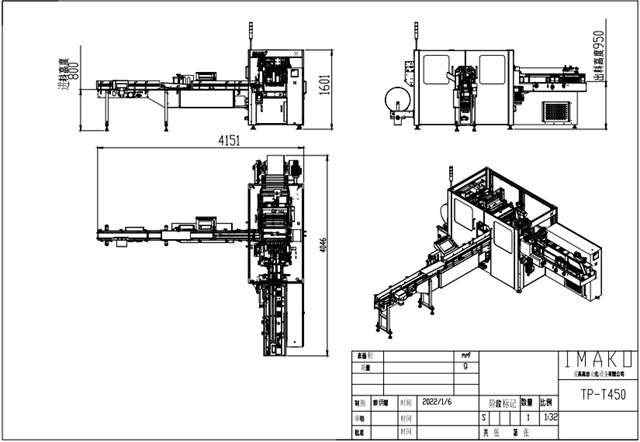

Machine size(mm)

L4150*W4046*H1600

Machine noise (dB)

≤85

Machine weigh(KG)

3000

Perforation option

Straight line /Oval shape form

Alternative

Film thickness (mm)

0.04-0.05

Packaging material

CPPPE&Complex film

Film roll Max. range(mm)

Diameter:≤500Width:340

Movement control mode

16 servo shafts

positioning control

Compressed air (mpa)

Air source≥0.5

Special configuration

Three shaping function unitsElectronic handwheel adjustment Unit (All units can operate independently)

Tissue paper converting machine is a highly efficient equipment used in the production of tissue paper products. It is the backbone of any tissue paper manufacturing industry. In this article, we will discuss the functionalities, advantages, and challenges associated with tissue paper converting machines.

Functionality of Tissue Paper Converting Machine

A tissue paper converting machine is designed to convert jumbo tissue rolls into different kinds of tissue paper products like facial tissues, toilet rolls, napkins, kitchen rolls, and hand towels. The machine comes with different components like unwinding systems, embossing units, slitting stations, perforating units, and winding units for the production of these various products.

Advantages of Tissue Paper Converting Machines

The use of tissue paper converting machines in tissue paper manufacturing offers manufacturers enormous advantages. Firstly, it increases production efficiency, which leads to higher productivity levels. Secondly, the machine can produce different tissue paper products efficiently. Thirdly, tissue paper converting machines produce high-quality products that meet the standard specifications required in the market.

Challenges of Tissue Paper Converting Machines

Despite the advantages of tissue paper converting machines, there are still some challenges that manufacturers may face. Firstly, the high cost of acquiring and maintaining the machine may be a significant challenge for small-scale tissue paper manufacturers. Secondly, the complexity of the machine may require specialized technical knowledge that only a few people possess. Lastly, the conversion process requires a constant supply of energy, which may lead to high energy costs for the manufacturer.

Conclusion

Tissue paper converting machines have revolutionized the tissue paper manufacturing industry. They offer numerous advantages but also possess several challenges that manufacturers may face. Nevertheless, with proper maintenance, skilled operators, and technical support services, tissue paper converting machines represent a wise investment for any tissue paper production firm.



TP-T450 multi servo high spped facial tissue single wrapping machine is suitable for automatically packing facial tissue paper, V fold wipes, napkins or similar Non-woven fabric, dust-free paper by plastic film three-dimensional wrapping.



facial tissue.jpg

Standard functions:

Electronic handwheel adjustment, tissue hook forming, bag shaping, slapping shaping;

Automatic speed adjustment and paper towel incoming flow detection, paper towel height, length detection, alarm stop function;

Torque overload protection;

The main push rod, board seeding and movable edge guide are equipped with cylinder overload protection function.

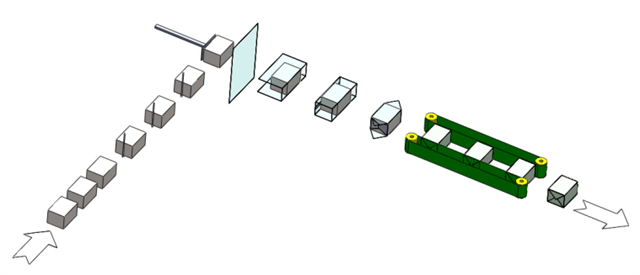

TP-T180流程圖1 .png

TP-T450 tissue paper converting machineMain Parts

1. Film Dragging Roll

The Film Dragging Rollers are an important component of the Kitchen paper rolls packing machine. They are used to pull the film across the surface of Kitchen paper rolls and ensure that the film is tightly wrapped around the rolls.

2. Film cutting knife holder

The Film-cutting knife holder is also responsible for protecting the blade from dirt and debris that may be present in the manufacturing process. This helps to ensure that the blade remains sharp and effective, which is essential for maintaining the quality of the packaged Kitchen paperrolls.

3. Machine Base

The structure of the base determines the stability of the whole machine .
Related Cases Your Professional TP-T450 tissue paper converting machine Supplier in China.
we from factory environment construction to equipment configuration support our production, all leading to high quality products.
