Name: TP-T450 Soft Tissue Paper 3D Shrink-Film Wrapping Packing Machine
Brand: IMAKO

91插插插影_日本免费一区二区三区四区_啪啪中文字幕_精品国产乱码久久久久久精东_亚洲日韩中文第一精品_91精品啪在线观看国产足疗

YOUR POSITION：HOME > Machines > Tissues Packing Machine >

TP-T450 Soft Tissue Paper 3D Shrink-Film Wrapping Packing Machine

Price: Negotiable
Model Number: TP-T450
Power: 12.42KW
Application: Facial Tissue,Napkin,V fold Hand Towel Paper
Weight: 3000KG
Output: Highspeeds
Packaging dimension: Diameter:≤500，Width:340
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

Features

The tissue paper packing machine is designed with several features that make it an idealchoice for packaging tissue paper products. Some of the key features include:

1. High-speed packaging: The tissue paper packing machine is designed to operate at highspeeds, making itpossible to pack a large number of tissue paper products in a short amountof time.
2. Automatic operation: The machine is designed to operate automatically, with minimal humanintervention required. This ensures that the packaging process is efficient, accurate, andconsistent.
3. User-friendlyinterface: The machine is designed with a user-friendly interface, making it easyto operate and maintain.
4. Durable construction: The machine is constructed using high-quality materials that ensure its durability and longevity.
5. Customizable: The tissue paper packing machine can be customized to meet the specificpackaging requirements of different tissue paper products.Uses

The tissue paper packing machine is designed to ensure efficient and accurate packaging oftissue paper products. The machine functions by:

1. Loading the tissue paper products onto the machine.
2. Wrapping the tissue paper products in film or paper.
3. Sealing the packaging using heat or adhesive.
4. Printing labels or branding information on the packaging

5. Dispatching the packaged tissue paper

TP-T450 main parameter configuration
Scope of application	Facial tissue, V fold wipes, napkins, Non-woven fabric, dust-free paper	Power supply	380V/50Hz
Feeding mode	ASF multi - stage intelligent feeding system	Total power (KW)	12.42

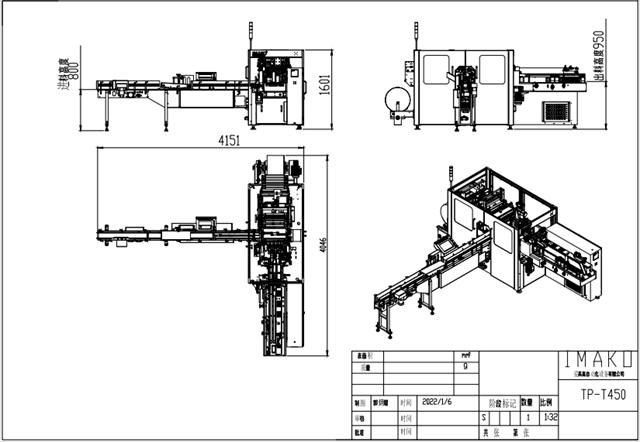

Machine size(mm)	L4150W4046H1600	Machine noise (dB)	≤85
Machine weigh(KG)	3000	Perforation option	Straight line /Oval shape form	Alternative
Film thickness (mm)	0.04-0.05	Packaging material	CPP、PE&Complex film
Film roll Max. range(mm)	Diameter:≤500，Width:340	Movement control mode	16 servo shafts positioning control
Compressed air (mpa)	Air source≥0.5	Special configuration	Three shaping function units、Electronic handwheel adjustment Unit (All units can operate independently)

★TP-T450 multi servo high spped Tissue Paper Packing Machine is suitable for automatically packing facial tissue paper, V fold wipes, napkins or similar Non-woven fabric, dust-free paper by plastic film three-dimensional wrapping.

★ This machine can run in high speed stably with low noise, it has the advantages of simple operation, wide range of packaging, quick specification conversion, convenient maintenance, low cost,etc.

The tissue paper packing machine is an advanced machine used for packaging purposes,particularly for packaging of tissue paper products such as facial tissues, toilet rolls, andpaper towels. The machine is designed to ensure the safe and secure packaging of tissuepaper products.

The tissue paper packing machine can be used for a wide range of applications in variousindustries, including:
1. Paper industry: The machine can be used for packaging tissue paper products in the paperindustry.
2. Food industry: The machine can be used for packaging paper towels and other tissue paperproducts used in the food industry.
3. Healthcare industry: The machine can be used for packaging facial tissues and toilet rollsused in the healthcare industry.
Functionality

★Standard functions: Electronic handwheel adjustment, tissue hook forming, bag shaping, slapping shaping; Automatic speed adjustment and paper towel incoming flow detection, paper towel height, length detection, alarm stop function; torque overload protection; The main push rod, board seeding and movable edge guide are equipped with cylinder overload protection function.

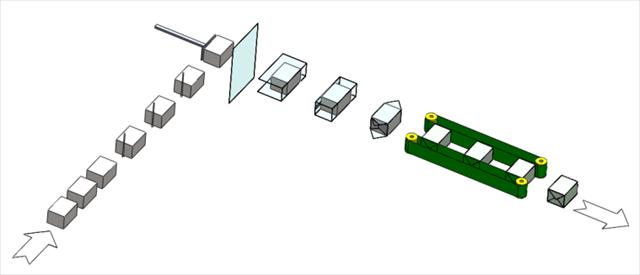

TP-T180流程圖1 .png

Products Categories

Related Products

More》

Tissue Paper Packing Machine Soft Paper Packing Machine Soft Tissue Packing Machine

TP-T450 Soft Tissue Paper 3D Shrink-Film Wrapping Packing MachineMain Parts

1. Film cutting knife holder

The Film-cutting knife holder is also responsible for protecting the blade from dirt and debris that may be present in the manufacturing process. This helps to ensure that the blade remains sharp and effective, which is essential for maintaining the quality of the packaged Kitchen paperrolls.

2. Insertion of corners

Insertion of corners refers to the process of folding and securing the corners of the diaper package to create a secure and stable package. The corners are typically folded inward and then sealed to prevent the contents from spilling out or being damaged during storage and transportation.

3. Electric cabinet

It is typically made of a durable, high-quality material that can withstand the rigors of daily use and the high-speed movement of the packaging machine. It is designed to be easily accessible for maintenance and repairs, and is typically equipped with doors or panels that can be easily removed for access to the internal components.
