Name: TP-R220 Kitchen Paper Towel Roll Packing Machine Packer
Brand: IMAKO

YOUR POSITION：HOME > Machines > Kitchen Paper Rolls Packing Machine >

TP-R220 Kitchen Paper Towel Roll Packing Machine Packer

Price: Negotiable
Model Number: TP-R220
Power: 12KW

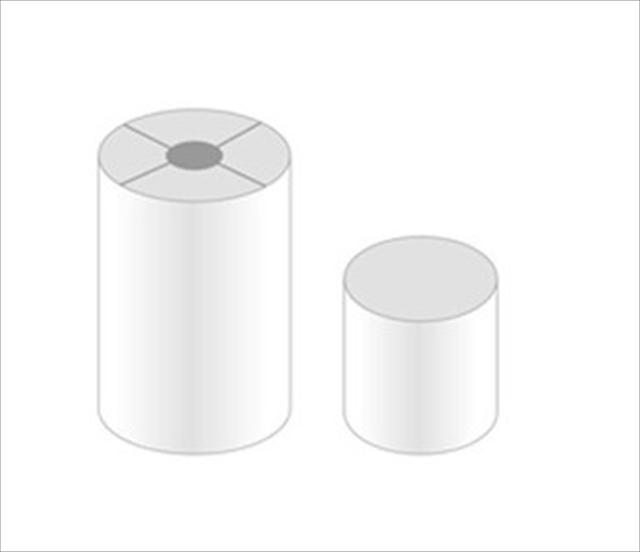

Application: auto packing core/coreless toilet paper or kitchen paper
Weight: 1800KG
Output: 200Pack/min
Packaging dimension: Length (L): 80-220 Diameter (D): 80-130 MM
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

★Adopt servo control for paper arrangement, paper feeding, film conveying, film sealing, film cut off, paper direction changing. Has advantages of complete operation configuration, high efficiency, easy to operate, wide size range, quick sizes changing, convenient maintenance, low cost in using etc..

★Standard functions equipped: Inching function, line function, PLC temperature control function, diameter error detection and alarm function, length error detection and alarm function, auto seal open/close function, film stop feeding when no material function.

★Maximum stable packing speed of roll paper with core: 200 rolls/min

★Maximum stable packing speed of coreless roll paper: 150 rolls/min

★Can realize length changing from 80-220mm by setting on touch screen directly.

TP-R220 main parameter configuration
Design packing speed	220packs/min
Stable packing speed	≤200 pack/min	relate to product size
Maximum flm width(mm)	430
Cutter configuration	Double cutters
Film install structure	Air shaft
Machine weight(KG)	1800
Machine noise(db)	≤78dB
Percentage of pass	≥97%
Efficiency	≥85%
Power supply	380V/60Hz
Packaging film material	BOPP、Spp
Film thickness	0.018-0.03

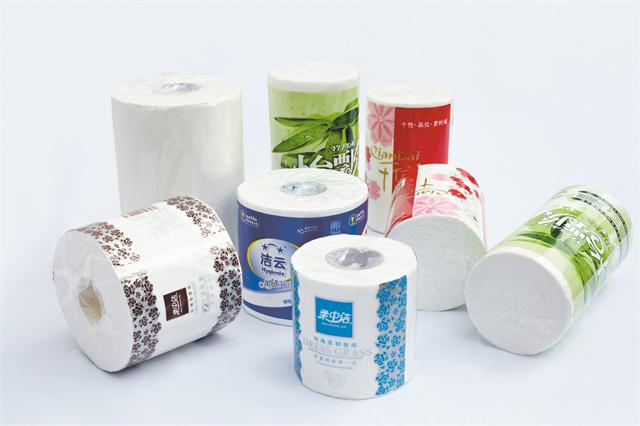

TP-R220 automatic single roll paper wrapping machine is suitable for auto packing core/coreless toilet paper or kitchen paper.

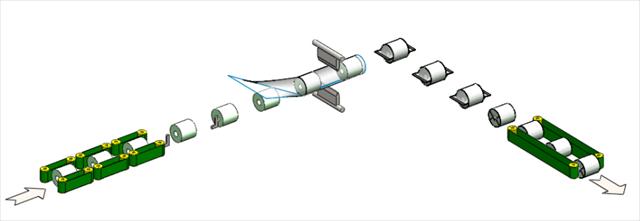

Link conveyor system, auto monitor in feed rolls flow, machine auto-stop for limited rolls, rolls auto arrange and feed function, auto stop for abnormal operation and no facial tissue condition, auto alarm and stop for no film, film cutting position electronic auto adjust function, auto-memory and keep parameters function, main machine jog and separated action function, side-sealing part separated action function, whole machine linkage and emergency stop function, whole machine cycle stop and auto display defaults function.
