Name: TP-B20TA Automatic Multi-pack Tissue Paper Packing Machine
Brand: IMAKO

91插插插影_日本免费一区二区三区四区_啪啪中文字幕_精品国产乱码久久久久久精东_亚洲日韩中文第一精品_91精品啪在线观看国产足疗

YOUR POSITION：HOME > Machines > Folded Paper Towels Packing Machine >

TP-B20TA Automatic Multi-pack Tissue Paper Packing Machine

Brand Name: IMAKO
Price: Negotiable
Model Number: TP-B20T
Power: 12.42KW
Application: bundle packing soft pack facial tissue and napkin
Weight: 1800kg
Output: 18Pack/min

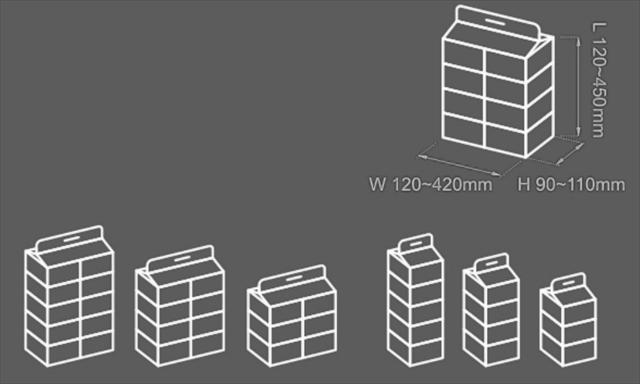

Packaging dimension: Length (L): 180-450 Width (W): 120-420 Height (H): 90-100 MM
Place of Origin: CHINA.
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

★Adopts servos control for tissue arrangement, counting, tissue pushing, tissue forwarding, bag opening, tissue fill into bag. This machine is easy to operate and maintain

★Adopts central vacuum management mode, can efficiency lower power consumption.

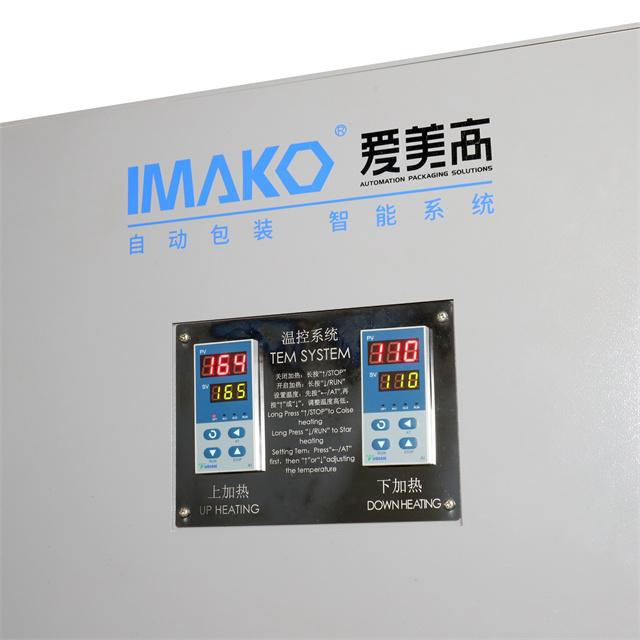

★Adopts intelligent sealing system, alternating current control, up & down independent temperature control, can meet different kinds of packaging materials, ensure nice sealing and stably running.

TP-B20T main parameter configuration			Machine weight(KG)	1800
Specification\Model \item	TP-B20T		Bag material	CPPPE film (Thickness 0.05mm)
Scope of application	Single film pack soft drawn facial tissue	Bundle packing	Compressed air	Pressure≥0.6 Air flow.≥30Lmin (Buyer prepare)
Packing style	1x3,1x4,1x5,1x6 2x3,2x4,2x5,2x6 33,3x4,3x5,3x6	One click to realize size change over	Power supply	308V/50Hz
Packing style	1x3,1x4,1x5,1x6 2x3,2x4,2x5,2x6 33,3x4,3x5,3x6	One click to realize size change over	Movement control mode	7 shafts servo positioning control
Design speed	20bags/min		Main transmission mode	Servo control shaft nos
Stable speed	≤18bags/min	Relate to product size	Machine color and craft	Deep grey, static spray paint craft
Packaging material install structure	Dual bag racks		Packing style	Same to manual packing style
Bag storage quantity	≤400 bags		Gusset mode	Vacuum mould forming
Single pack tissue size(mm)	L120-210 /W90-110/H30-100		Optional device	Film tube device

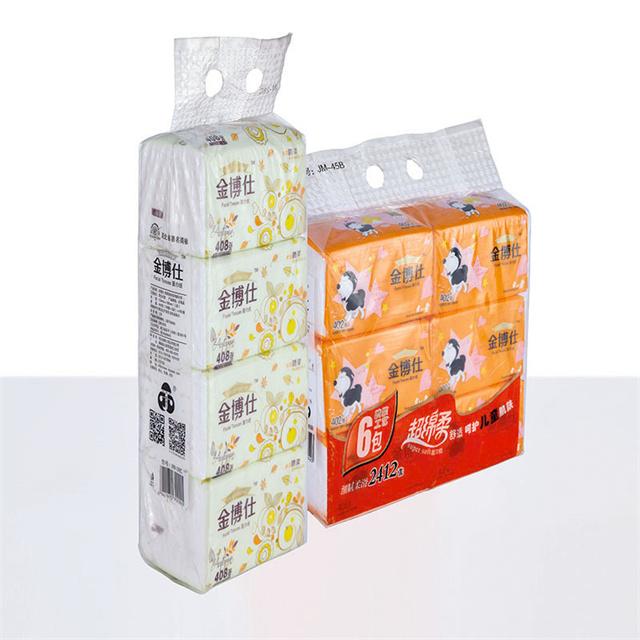

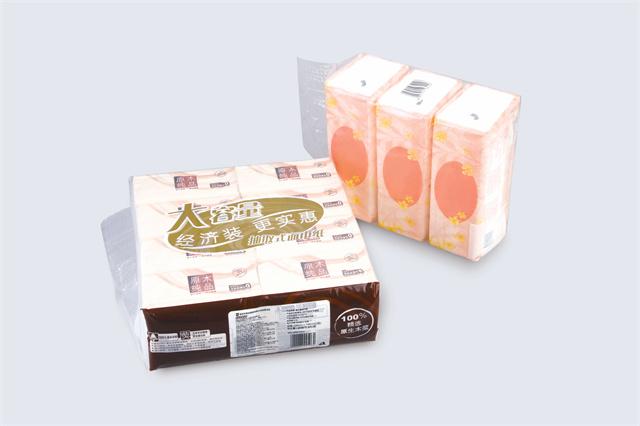

TP-B20T automatic tissue bundle packing machine is suitable for bundle packing soft pack facial tissue and napkin.

Equipped with functions of bag open protection, air source management, fault alarm and display, servo overload protection.

TP-B20T 6.jpg

Products Categories

Related Products

More》

Tissue paper packing machine Tissue Multi-pack packing machine Tissue bundle packing machine

TP-B20TA Automatic Multi-pack Tissue Paper Packing MachineMain Parts

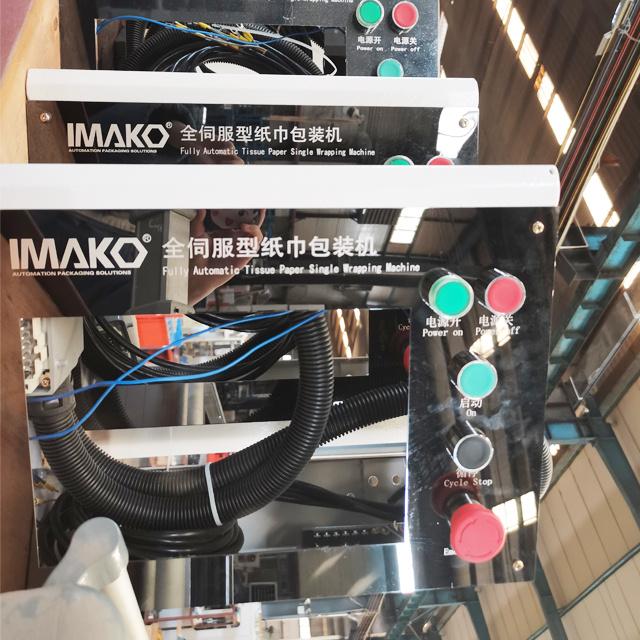

1. Control panel unit

Protects the touch screen for easy use and operation by the operator.

2. Swinging sealing part

Strive to reduce the vibration when the swinging part stamping, ensure the stability of the swinging sealing part, improve the accuracy of the swinging sealing part , so as to improve the uniformity of side sealing, ensure the packaging effect.

3. Feeding conveyor

Simple and reliable structure, reasonable transmission design.

Manufacturer Advantage We have strong power to support our production, from factory environment construction to equipment
configuration, all leading to high quality products.

Loyal Service

The trust of our customers is our achievement. We cherish every customer and grow with them as partners.

Professional Team

We have more than 12 years experiences in household paper production industry and build a professional team with 12 engineers.

Improved hygiene

TP-B20TA Automatic Multi-pack Tissue Paper Packing Machine are designed to be clean and hygienic, reducing the risk of contamination and ensuring that products are packaged in a safe and sanitary manner.

Cost savings

By automating the paper towel packaging process, businesses can save time, labor costs, and materials. This can result in significant cost savings over time, allowing companies compete more effectively in the marketplace.
