Name: TP-B40TW Automatic Bundling Tissue Paper Towel Napkin Bag Packing Machine
Brand: IMAKO

91插插插影_日本免费一区二区三区四区_啪啪中文字幕_精品国产乱码久久久久久精东_亚洲日韩中文第一精品_91精品啪在线观看国产足疗

YOUR POSITION：HOME > Machines > Folded Paper Towels Packing Machine >

TP-B40TW Automatic Bundling Tissue Paper Towel Napkin Bag Packing Machine

Brand Name: IMAKO
Price: Negotiable
Model Number: TP-B40TW
Power: 20KW
Application: single soft pack facial tissue, hand towel paper and napkin
Weight: 4800KG
Output: 30Pack/min
Packaging dimension: Length (L): 180-450 Width (W): 120-420 Height (H): 90-115 MM
Place of Origin: CHINA.
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

1.Adopts servos control for tissue arrangement, counting, direction changing, tissue fill to bag, bag catching, bag conveying, bag opening and seal parts, This machine is easy to operation and maintenance.

2.Adopts intelligent sealing system, ensure nice sealing and stably running.

3.The machine is suitable for bundle packing 1-2 rows, easy to change specification and maintenance, high efficiency. Able to equip with thermos transfer printer or ink printer.

TP-B40TW main parameter configuration
Specification/Model /item	TP-B40Tw
Scope of application	Single pack tissue bundle packing
Feeding type	Horizontal feeding

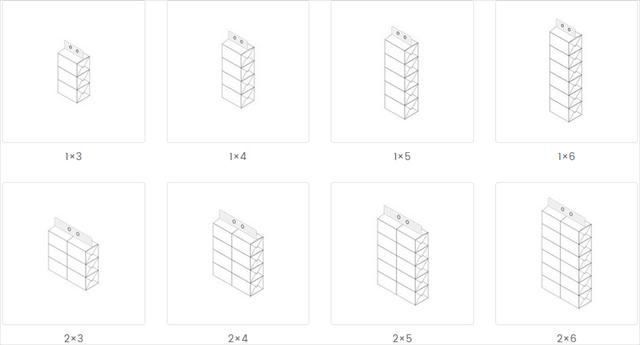

Packing style	1x3,1x4,1x5 2x3,2x4,2x5 3x3,3x4,3x5
Packing style	1x3,1x4,1x5 2x3,2x4,2x5 3x3,3x4,3x5
Bag install mode	Dual bag racks
Bag storage quantity	≤600 bags
Machine weight(KG)	4800

Bag type	Premade bag with holes
Compressed air(MPA)	Pressure≥0.6，air flow≥30L/min
Power supply	380V/50Hz
Servo control shaft nos	9
Electrical control system	VEICHI，MITSUBUSHI
Temp. control system	YUDLAN
Pneumatic control system	SMCIAIRTAC
Optional device	lnk code printer, thermos transfer code printer, code spray printer

TP-B40TW series automatic tissue paper bundle packing machine is suitable for auto bundle packing single soft pack facial tissue, hand towel paper and napkin.

Equipped with functions of bag open detection function, waste bag free stop automatic rejection, air source management, fault alarm and display, servo overload protection.

Products Categories

Related Products

More》

Towel Paper Packing Machine Tissue Bundling Packaging Machine Tissue Towel Packing Machine

TP-B40TW Automatic Bundling Tissue Paper Towel Napkin Bag Packing MachineMain Parts

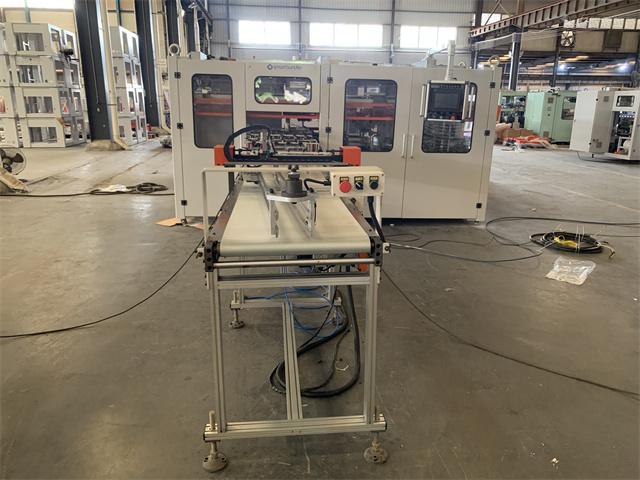

1. Feeding conveyor

Simple and reliable structure, reasonable transmission design.

2. Conveying line

The Frequency conversion motor drives the conveyor belt to feed material, with photoelectric eye automatic counting function, cam-controlled push and pallet mechanism, automatic feeding blocking protection function, automatic alarm function.

3. Machine Base

The structure of the base determines the stability of the whole machine .

Manufacturer Advantage We have strong power to support our production, from factory environment construction to equipment
configuration, all leading to high quality products.

Cost savings

By automating the paper towel packaging process, businesses can save time, labor costs, and materials. This can result in significant cost savings over time, allowing companies compete more effectively in the marketplace.

Efficient Reaction

24 hours online service is hard but our team loves to help our customers solve problems, that what we try to do.

Improved hygiene

TP-B40TW Automatic Bundling Tissue Paper Towel Napkin Bag Packing Machine are designed to be clean and hygienic, reducing the risk of contamination and ensuring that products are packaged in a safe and sanitary manner.

Innovation

Imako are constantly innovating and developing new technologies to improve the performance and efficiency of TP-B40TW Automatic Bundling Tissue Paper Towel Napkin Bag Packing Machine. This commitment to innovation allows them to offer the latest and greatest advancements to their customers.
