YOUR POSITION：HOME > Machines > Folded Paper Towels Packing Machine >

TP-T300 Full Servo Large Size Face Tissue Paper Packing Machine

Brand Name: IMAKO
Price: Negotiable
Model Number: TP-T300
Power: 12.42KW
Application: Tissue Paper,Napkin
Weight: 3000KG
Output: 60 packs/min
Packaging dimension: L(100~360) /W(90~225) /H(40~170)MM
Place of Origin: CHINA.
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

★ This machine can run in high speed stably with low noise, it has the advantages of simple operation, wide range of packaging, quick specification conversion, convenient maintenance, low cost,etc.

The Face Tissue Paper Packing Machine is mainly composed of a material arranging section, a paper pushing and dragging section, and a lower paper folding, corner inserting, paper combing, middle sealing, film supporting, film pulling and breaking, middle conveying and edge folding, and two side sealing and discharging sections.

TP-T300 main parameter configuration
Scope of application	Facial tissue, V fold wipes, napkins	Power supply	380V/50Hz
Feeding mode	ASF multi - stage intelligent feeding system	Total power (KW)	12.42
Machine size(mm)	L4150W4046H1600	Machine noise (dB)	≤85
Machine weigh(KG)	3000	Perforation option	Straight line /Oval/ Semicircle shape form	Alternative
Film thickness (mm)	0.04-0.05	Packaging material	CPP、PE&Complex film
Film roll Max. range(mm)	Diameter:≤600，Width:520	Movement control mode	16 servo shafts positioning control
Compressed air (mpa)	Air source≥0.5	Special configuration	Three shaping function units、Electronic handwheel adjustment Unit (All units can operate independently)

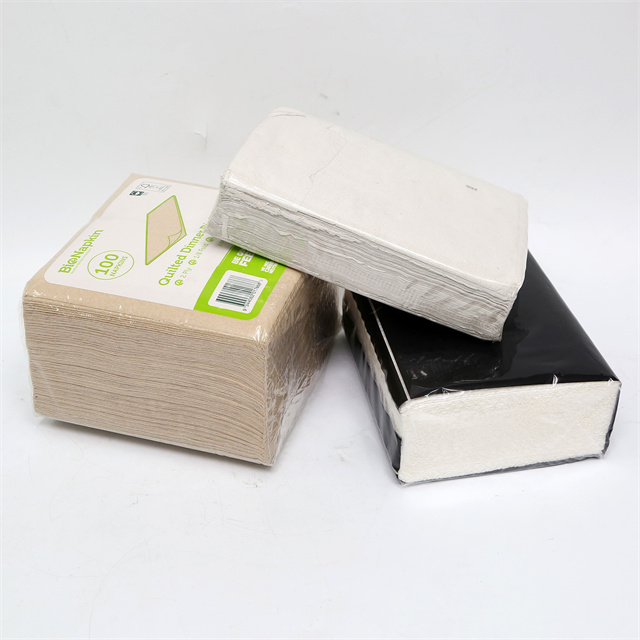

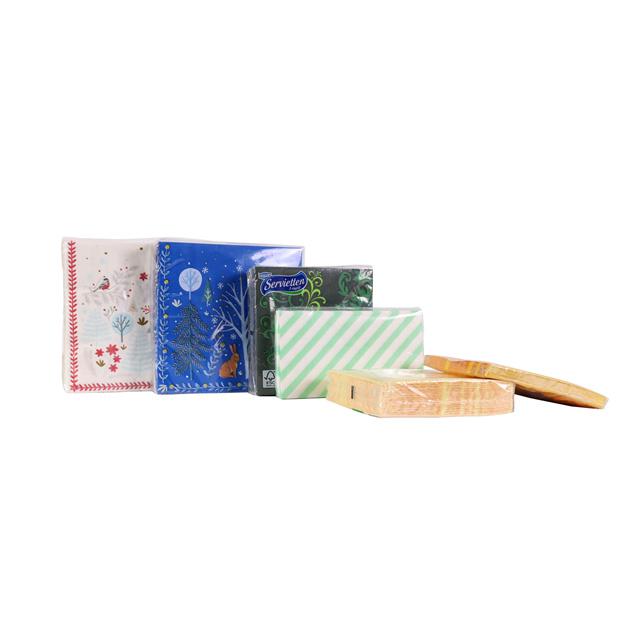

TP-T300 multi servo large size facial tissue single wrapping machine is suitable for automatically packing facial tissue paper, V fold wipes, napkins or similar Non-woven fabric, dust-free paper by plastic film three-dimensional wrapping.

Standard functions:

Electronic handwheel adjustment, tissue hook forming, bag shaping, slapping shaping;

Automatic speed adjustment and paper towel incoming flow detection, paper towel height, length detection, alarm stop function;

Torque overload protection;

The main push rod, board seeding and movable edge guide are equipped with cylinder overload protection function.

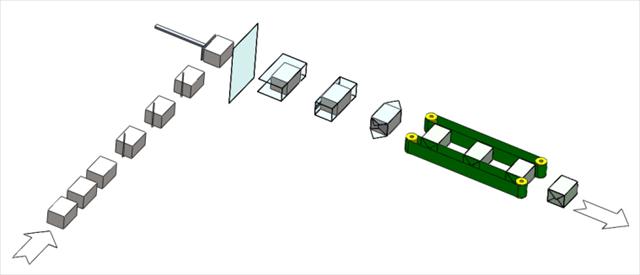

TP-T180流程圖1 .png

Products Categories

Related Products

More》

Face Tissue Packing Machine Tissue Paper Packing Machine Face Paper Packing Machine

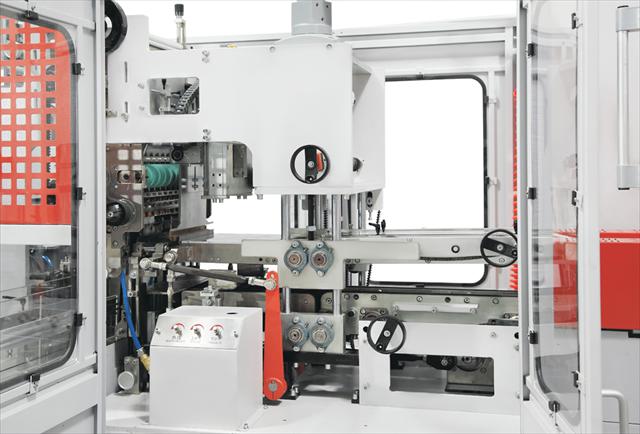

TP-T300 Full Servo Large Size Face Tissue Paper Packing MachineMain Parts

1. Swinging sealing part

Strive to reduce the vibration when the swinging part stamping, ensure the stability of the swinging sealing part, improve the accuracy of the swinging sealing part , so as to improve the uniformity of side sealing, ensure the packaging effect.

2. Servo motor

We use a reliable brand to ensure smooth operation at low and high speeds and accurate positional accuracy.

3. Conveying line

The Frequency conversion motor drives the conveyor belt to feed material, with photoelectric eye automatic counting function, cam-controlled push and pallet mechanism, automatic feeding blocking protection function, automatic alarm function.

Manufacturer Advantage We have strong power to support our production, from factory environment construction to equipment
configuration, all leading to high quality products.

Competitive edge

By investing in TP-T300 Full Servo Large Size Face Tissue Paper Packing Machine, businesses can gain a competitive edge over their competitors. The automation and efficiency of the machines can help businesses to stand out in a crowded marketplace and attract new customers.

Cost savings

By automating the paper towel packaging process, businesses can save time, labor costs, and materials. This can result in significant cost savings over time, allowing companies compete more effectively in the marketplace.
