YOUR POSITION：HOME > Machines > Diaper Packing Machine >

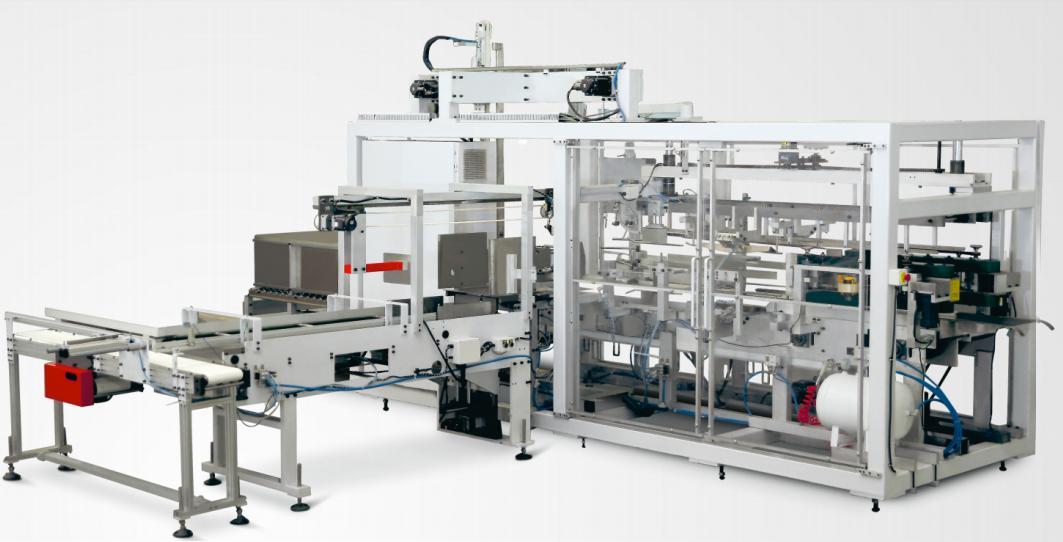

DP-C20 baby Automatic Diaper Packing Machine

Price: Negotiable
Model Number: DP-C20
Power: 380V/50HZ
Application: baby diaper, pull pants,adult pull pants,nursing pad etc.
Weight: 4000KG
Output: 30 Bags/min
Packaging dimension: L(150~300)/ W(230~450)/ H(270~450)
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

DP-C20 This machine adopts PLC and 7 shafts servo controller for drive and control unit, can realize automatic

servo control of product conveying,counting, stacking,carton catching,carton opening, product fill to carton and carton  sealing.


Scnne Of Anr

Bundle Packed Diaperpull Pants Eto

Carton Storage Cuantity

≤100 Cartons



Equipment judgment mode

Automac Single Lane Intelligent Feeding System

Carton Seal Mod

Seelling Machine Tape Sealing



Max Production Spee



Max. 30 Bags/min

Machine Weight

4000KG Scope Of Application

Arrangement Type(ixrxc

(1-2)x(1-2)×(3-4)



Air Compression(mpa)

≥0.6

Carton Structure

3/5 Layes Corrugated Paper, Thickness 3-5mm, Tube Carton

Power Supply

380V/50HZ

Carton Place Typ

Flat Single Storage Position

Transmission Mode

Servo/inverter/cylinder Positioning Control

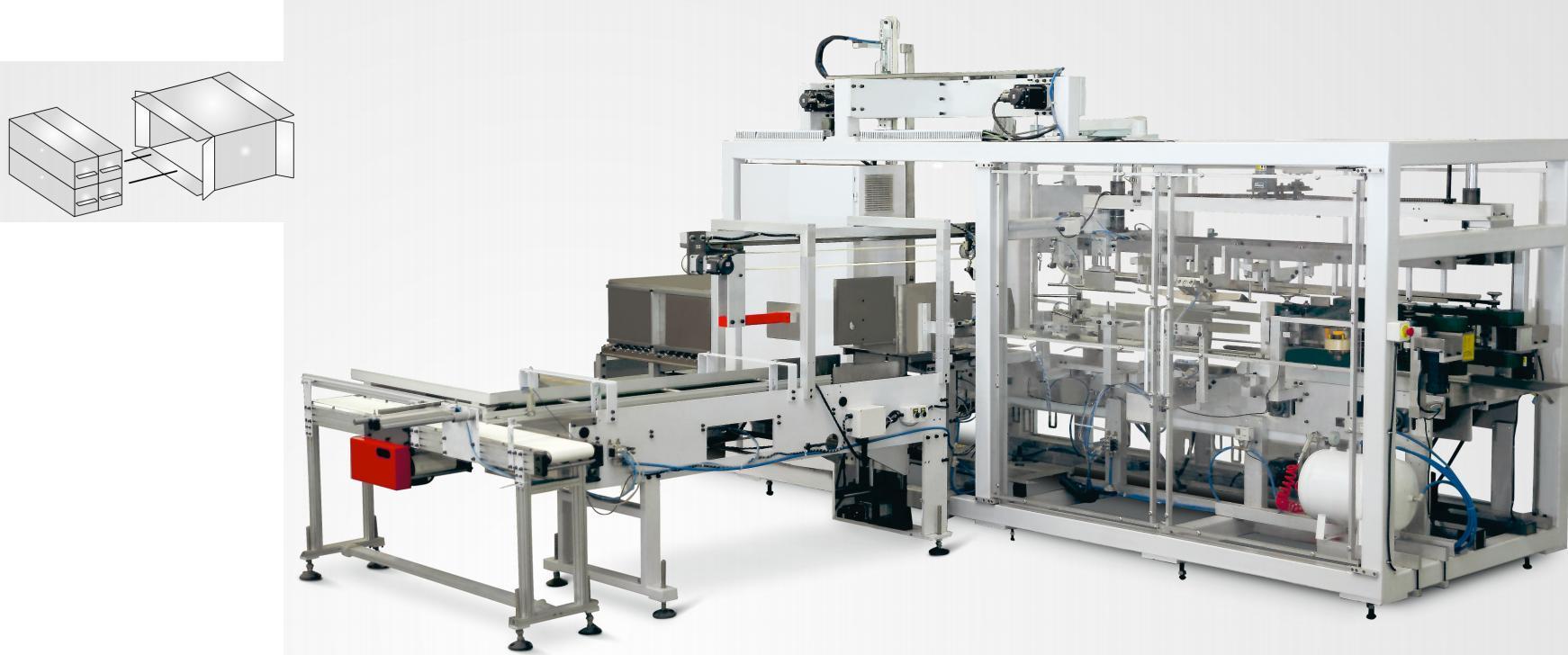

This machine can realize bundle packed diaper autoamtic stacking and cartoning.

★Adopts servo drive for diaper separation and stacking,cartong and sealing,easy for carton size changing.

★HMI:Touch screen setting and operation.Easy and convenient for operation.

★Failure self-diagnosis alarm: The reason and location of the fault can be quickly found and display

on the touch screen to facilitate equipment maintenance.

★Adopts servo system for intelligently diaper dividing, satisfy cartoning of different products with different specification.

★ This machine can realize bundle packed diaper autoamtic stacking and cartoning.

★ Adopts servo drive for diaper separation and stacking,cartong and sealing,easy for carton size changing.

★ HMI:Touch screen setting and operation.Easy and convenient for operation.

★ Failure self-diagnosis alarm: The reason and location of the fault can be quickly found and display on the touch screen to facilitate equipment maintenance.

★ MAodnpt(to)rta(s)e(s)tor(m):cart(Cart)o(o)n(n) enaig(r)frm an(uct m)idnn(it)cre(i)nigco(t),sta(av)ile(d) r(r)unn(unn)in(n)g.without carton or diaper.

★ Adopts servo system for intelligently diaper dividing, satisfy cartoning of different products with different  specification.

★ Equipped with air source mangement function, fault alarm display function,servo overload protection  function.


Adopts servo system for intelligently diaper dividing,satisfy cartoning of different products with different   specification.




DP-C20 baby Automatic Diaper Packing MachineRelated Main Parts
Conveyor Belt
Conveyor Belt
The belt is an essential component of a baby diaper packing machine that ensures the smooth and efficient movement of the product from one station to another. It is responsible for driving the conveyor belt and coordinating the timing of the machine's various components.
Pushboard
Pushboard
The pushboard in a diaper packaging machine is a critical component that helps to control the movement of the filled diaper bags as they move through the packaging process. The pushboard is typically mounted on the front of the machine, and is designed to guide the bags into position as they are sealed and cut.
Insertion of corners
Insertion of corners
Insertion of corners refers to the process of folding and securing the corners of the diaper package to create a secure and stable package. The corners are typically folded inward and then sealed to prevent the contents from spilling out or being damaged during storage and transportation.
Bag making machine suction cups
Bag making machine suction cups
The suction cups used in a bag making machine for a diaper packaging machine are an important component that helps to hold the filled diaper bags in place as they are being sealed and cut. it create a vacuum around the bags, which helps to maintain the shape and position of the bags during the packaging process.
DP-C20 baby Automatic Diaper Packing MachineRelated Services
Remote diagnosis service overseas

1. Remote diagnosis service overseas

Necessary, engineers are available to do machinery service overseas but buyer need to responsible for all the expenses. Usually equipment failure occurs, our after-sales service technician will contact you as soon as possible to solve the problem.

2. Equipment Repair

During one year warranty, we are responsible for replacing parts those are damaged due to its quality, free of charge. When the part damages are caused by incorrect operation or human factors, the cost of parts should be paid by buyer. We assures that all parts we provided are at resonable prices.
Equipment Repair
Upgrades

3. Upgrades

Imako offer upgrades to help customers improve the performance and functionality of DP-C20 baby Automatic Diaper Packing Machine. This includes adding new features or capabilities, as well as improving existing ones.
Related FAQ
1.How do Tissue packaging machine work?
Paper towel packaging machines typically work by inserting pre-rolled paper towels into a packaging material, such as a box or bag. The machine then seals the package and applies a label to the outside.
2.How much does a paper towel packing machine cost?
The cost of a paper towel packing machine can vary widely, depending on the type and size of the machine, as well as any additional features or accessories. On average, you can expect to pay anywhere from a few hundred to several thousand dollars for a paper towel packaging machine.
3.How do I maintain a packing machine?
To maintain DP-C20 baby Automatic Diaper Packing Machine, it's important to regularly clean and sanitize the machine, keep it well-stocked with packaging materials, and regularly check for any issues or signs of wear and tear. You should also follow the manufacturer's instructions for routine maintenance and upk
4.What types of Tissue towel packaging machines are available?
There are several types of Tissue towel packaging machines available, including manual, semi-automatic, and fully automatic models. Each type has its own unique features and capabilities, so it's important to choose the right one for your needs.
5.What are the components of packaging machine?
The components of DP-C20 baby Automatic Diaper Packing Machine typically include rolls of tissue paper, a product conveyor, a taping mechanism, a wrapping mechanism, and an output conveyor.
6.What is a tissue paper packing machine?
A tissue paper packing machine is a type of manufacturing equipment used to wrap items such as hygiene products, cosmetics, and pharmaceuticals in tissue paper.

Customer Reviews



Score
 Remove

Review Title

Review Text

   The Diaper Packing Machine is an absolute game-changer for our production line.


Sophia  2024-06-05

It's efficient, reliable, and has significantly increased our output.
   With the disposable diaper packing machine


Scarlett  2024-06-05

we've seen a noticeable decrease in packaging errors. It's precise and ensures every diaper is properly sealed.
   the adult diaper packing machine easy


Harper  2024-06-05

We've been using the adult diaper packing machine for months now and couldn't be happier to operate and has reduced our packaging time by half!
   The baby daiper packing machine has streamlined our packaging process,


Layla  2024-06-05

allowing us to fulfill orders faster and more efficiently.
   we started using the baby diaper packing machine


Madison  2024-06-05

Our customers have been impressed with the quality of packaging since . It gives our products a professional finish.
Start Customizing Your Machines Now!
Contact US

Tel: +86-15918973337

Email: Master@imakoautomation.com

MP/WhatsApp: +86-15918973337

Manufacturer Address:Factory & Office Building 3-4 Floor, C1,C2 of No.1,2D Jingyuan Industrial Distict, West of Chaoshan Rod, Shantou, Guangdong Province, China
