YOUR POSITION：HOME > Machines > Diaper Packing Machine >

DP-C10 Series Baby & Adult Diaper Pads Fully Automatic Carton Packing Machine

Price: Negotiable
Model Number: DP-C10
Power: 12KW
Application: diaper stacking and carton packing
Weight: 4000kg
Output: 10 cartons/min
Packaging dimension: Length (L): 150-300 Width (W): 230-450 Height (H): 270-45 MM
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

★ This machine adopts PLC and 7 shafts servo movements controller for driving and controlling unit. Product conveying, counting, stacking, carton picking, carton opening and sealing are controlled by servos.

★ This machine realizes automatically diaper stacking and carton packing.

★ Adopts servo for diaper stacking and carton sealing, convenient for carton size change over.

DP-C10 main parameter configuration

Specification/Model/

ltem

DP-C10

Scope of application

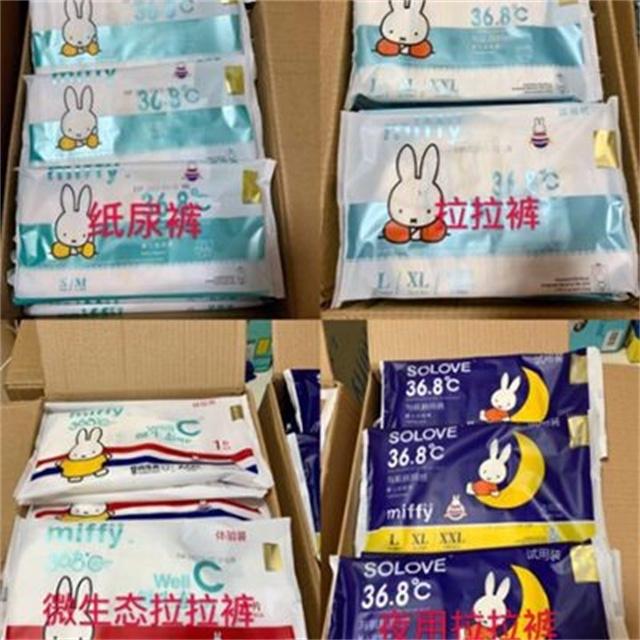

Soft packed baby diaper and pull-ups

Tissue feeding mode

Automatic single lane intelligent feeding system

Feeding speed

Max. feeding speed:30 bags/min

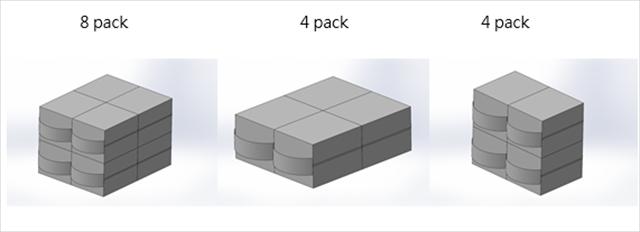

Array type

(Layer x row x column)

(1-2)x(1-2)x(3-4)

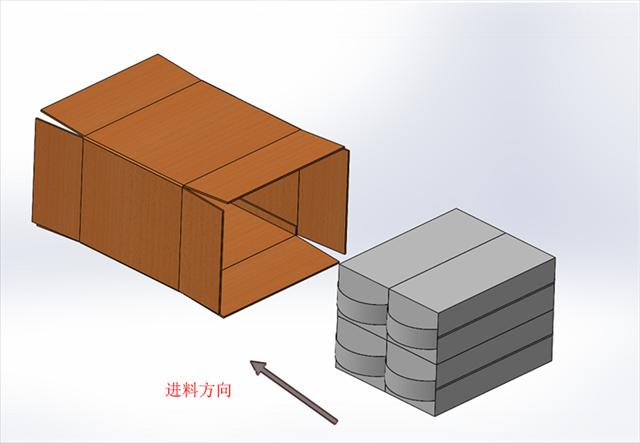

See packing drawing

Design speed

12 cartons/min

Relate to product size

Stable speed

10 cartons/min

Percent of pass

≥98%

In packing range

Carton structure

3,5 layers corrugated

carton.thickness

3-5mm,drum carton

Need punch forming in

advance, with fold



2 .png


★ This machine equipped with fault self-diagnosis, can trace the fault cause and display on touch, easy for machine maintenance.

★ Equips with monitoring system, can monitor if carton absence or product absence, avoid machine running without carton or product.

★ Adopts tape for carton sealing, firm and reliable，nice sealing，stably running.

★ Adopts servo control for material feeding system, intelligent material feeding. Can satisfy carton packing of different product with different specification.

★ Equipped with air source management, fault alarm and display, servo overload protection.

DP-C10 1.jpg


DP-C10 Series Baby & Adult Diaper Pads Fully Automatic Carton Packing MachineRelated Main Parts
Hook piece
Hook piece
The hook piece is a critical component that helps to hold the filled diaper bags in place as they move through the packaging process. The hook piece is typically mounted on the bed plate of the machine and is designed to engage with the edges of the diaper bags, ensuring that they remain in the correct position as they are sealed and cut.
Bag making machine suction cups
Bag making machine suction cups
The suction cups used in a bag making machine for a diaper packaging machine are an important component that helps to hold the filled diaper bags in place as they are being sealed and cut. it create a vacuum around the bags, which helps to maintain the shape and position of the bags during the packaging process.
Sealing parts
Sealing parts
Sealing parts are responsible for creating an airtight or watertight seal around the packaged diapers. These parts are crucial in ensuring that the diapers remain fresh and free from contamination during storage and transportation.
Insertion of corners
Insertion of corners
Insertion of corners refers to the process of folding and securing the corners of the diaper package to create a secure and stable package. The corners are typically folded inward and then sealed to prevent the contents from spilling out or being damaged during storage and transportation.
DP-C10 Series Baby & Adult Diaper Pads Fully Automatic Carton Packing MachineRelated Services
Solutions providing services

1. Solutions providing services

Over the past 12 years, we have served more than 1000 factories worldwide. Our engineering team and sales team are experienced to provide you with the right solution.

2. To visit the factory

Welcome to contact us to book a factory tour!
To visit the factory
Spare parts are in sufficient stock

3. Spare parts are in sufficient stock

Our sufficient inventory of spare parts is available to guarantee that every single part purchased by customer can delivered on time.
Related FAQ
1.How fast can a tissue packing machine wrap items?
The speed of a tissue paper packing machine can vary depending on the specific model and the size of the items being wrapped. However, the machines are designed to be fast and efficient, allowing for high-volume production.
2.Where is your factory located?
Our factory is located in Shantou city,Guangdong province,China.Which is a beautiful coastal city in the South-eastern of China.The airport name in our city is Jieyang Airport ,airport code SWA and high-speed railway station is Chaoshan Station .It's very convenient to come from Guangzhou city or
3.How do Tissue packaging machine work?
Paper towel packaging machines typically work by inserting pre-rolled paper towels into a packaging material, such as a box or bag. The machine then seals the package and applies a label to the outside.
4.What are the components of packaging machine?
The components of DP-C10 Series Baby & Adult Diaper Pads Fully Automatic Carton Packing Machine typically include rolls of tissue paper, a product conveyor, a taping mechanism, a wrapping mechanism, and an output conveyor.
5.How do I maintain a packing machine?
To maintain DP-C10 Series Baby & Adult Diaper Pads Fully Automatic Carton Packing Machine, it's important to regularly clean and sanitize the machine, keep it well-stocked with packaging materials, and regularly check for any issues or signs of wear and tear. You should also follow the manufacturer's instructions for routine maintenance and upk
6.What is a tissue paper packing machine?
A tissue paper packing machine is a type of manufacturing equipment used to wrap items such as hygiene products, cosmetics, and pharmaceuticals in tissue paper.
