Name: FA-P55 Sanitary Tissue Pad Napkins Wet Wipe Roll Film Packing Machine
Brand: IMAKO

91插插插影_日本免费一区二区三区四区_啪啪中文字幕_精品国产乱码久久久久久精东_亚洲日韩中文第一精品_91精品啪在线观看国产足疗

YOUR POSITION：HOME > Machines > Wet Wipe Packing Machine >

FA-P55 Sanitary Tissue Pad Napkins Wet Wipe Roll Film Packing Machine

Price: Negotiable
Model Number: FA-P55
Power: 12KW
Application: sanitary, pad and wet wipe
Weight: 2500KG
Output: 60 packs/min

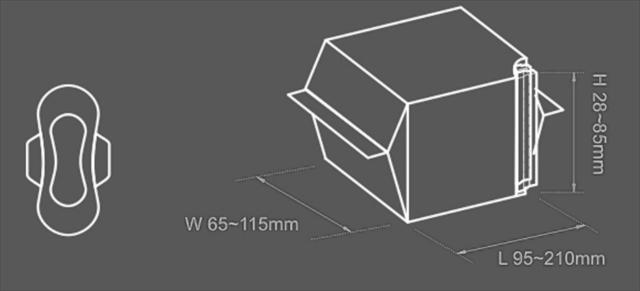

Packaging dimension: Length (L): 95-210 Width (W): 65-115 Height (H): 28-85 MM
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

Adopts inverter to control film roll placing. Adopts servos for film pulling & positioning, mold positioning, mold move and lift up, seal, fill into bag, bag open etc. Has advantages of complete operation configuration, high efficiency, easy to operate, wide size range, quick sizes changing, convenient maintenance, low cost in using etc..

FA-P55 main parameter configuration
Specification/Model/ ltem	FA-P55
Scope of application	Manually put material(can connect with palletizer)
Design speed	60 packs/min		Relate to product size
Stable speed	≥55 packs/min
Size mould	3 sets		Standard configuration, sizes provide by buyer
Machine weight(KG)	≤2500
Packaging material	PE,CPP,OPP lamination film
Film thickness(mm)	0.04-0.08
Maximum film diameter(mm)	600
Maximum film width(mm)	110
Fimcore diameter(mm)	76	According to national standard
Compressed air(WAP)	Air compression ≥0.5	Buyer prepare
Power supplier	380V/50HZ	According to national standard
Suit vollage fluctuate	+/-10%	According to national standard
I/O input (VDC)	24	Electrical control circle input
I/O output (VDC)	24	Electrical control circle output
Machine movement control mode	3 shafts servo shaft posiioning oontral	Electric cam movement curve
Machine main transmission mode	20 crmnti mechanical Cam+ electric Cam transmission
Machine color and craft	Oyster grey,static spray plant craft

FA-P55 automatic sanitary napkin packing machine is suitable for automatically packing sanitary, pad and wet wipe.


This machine has functions of sealing time constant, double material auto alarm and stop, film roll detection, inching, link operation.

Products Categories

Related Products

More》

Sanitary tissue packing machine Napkin Pads Packing Machine Wet Wipe Packing Machine

FA-P55 Sanitary Tissue Pad Napkins Wet Wipe Roll Film Packing MachineMain Parts

1. Bag-making parts

The machine uses a die cutter or other mechanism to cut the bag material into the desired shape and size. The formed bags are then transferred to a conveyor belt for further processing.

2. Bagging components

It is usually equipped with a sensor that ensures the bags are properly positioned before the filling process begins.

3. Electric cabinet

It is typically made of a durable, high-quality material that can withstand the rigors of daily use and the high-speed movement of the packaging machine. It is designed to be easily accessible for maintenance and repairs, and is typically equipped with doors or panels that can be easily removed for access to the internal components.
