Name: DP-T55 Automatic Cotton Tissue Packing Machine
Brand: IMAKO

91插插插影_日本免费一区二区三区四区_啪啪中文字幕_精品国产乱码久久久久久精东_亚洲日韩中文第一精品_91精品啪在线观看国产足疗

YOUR POSITION：HOME > Machines > Tissues Packing Machine >

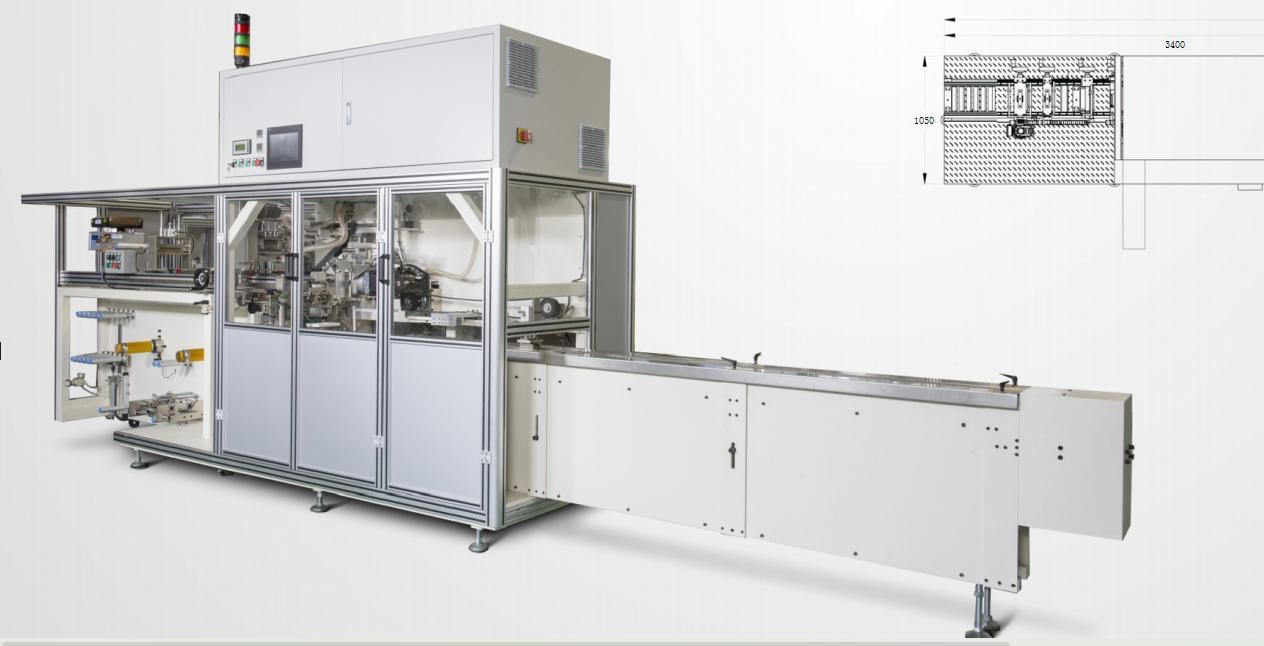

DP-T55 Automatic Cotton Tissue Packing Machine

Price: Negotiable
Model Number: DP-T55
Power:
Application: automatically packing cotton tissue,facial tissue and wet wipes.
Weight: ≤2500kg
Output:
Packaging dimension: L(95~210)/ W(65~115)/ H(28~85)
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

DP-T55 This machine is suitable for automatically packing cotton tissue,facial tissue and wet wipes.

eeding Type	Manually(can Connect With Stacking Machine	Ca Diamete(mm)	76
Machine Weight(kg	≤2500	Air Compression(mpa)	≥0.5
Packing Style	Film Tube Pillow Type Packing	Power Supply	380V/50HZ
Packaging Material	Pe.cpp,opp Film	Adaptive Voltage Change	+/-10%
Fim Thickness(mm)	0.04-0.08	Machine Movement Mode	3 Shaft Servo Positioning
Max.fim Roll Diameter(mm)	600	Machine Main Transmission Mode	20crmnti Mechanism Cam + Electrical Cam Transmission
Max.film Roll Width(mm)	110	Size Molds	3(Set)

Adopts inverter drive for film rolll releasing.Adopts servos to control movements of film pulling & positioning,

mold sending, lifting, seal, bag filing, bag open etc.lt has advantages of complete working functions configuration,

Basic function configurations:Constant sealing time, alarm and stop when twin pack, auto film roll volume detection, jog and link.

Max.stable production speed is 30bags/min..

Products Categories

Related Products

More》

Automatic Cotton Tissue Packing Machine

DP-T55 Automatic Cotton Tissue Packing MachineMain Parts

1. Bag-making parts

The machine uses a die cutter or other mechanism to cut the bag material into the desired shape and size. The formed bags are then transferred to a conveyor belt for further processing.

2. Film Dragging Rollers

The Film Dragging Rollers are an important component of the toilet roll packing machine. They are used to pull the film across the surface of the toilet rolls and ensure that the film is tightly wrapped around the rolls. The Film Dragging Rollers are also designed to be adjustable, which allow

3. Film-cutting knife holder

The Film-cutting knife holder is usually designed with a specific angle and position, which helps to ensure that the blade makes a straight and accurate cut. It is also designed to be easily adjustable, which allows for different sizes and shapes of film to be used as needed.
