Name: RP-10 Palletizing Machine Cooperative Robot Palletizer
Brand: IMAKO

91插插插影_日本免费一区二区三区四区_啪啪中文字幕_精品国产乱码久久久久久精东_亚洲日韩中文第一精品_91精品啪在线观看国产足疗

<blockquote id="4a66e"></blockquote><button id="4a66e"><wbr id="4a66e"></wbr></button>

YOUR POSITION：HOME > Machines > Robot palletizing machine >

< >

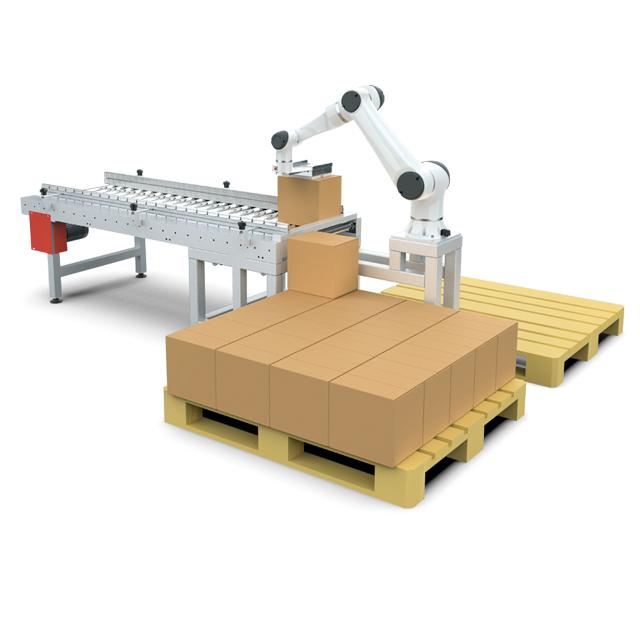

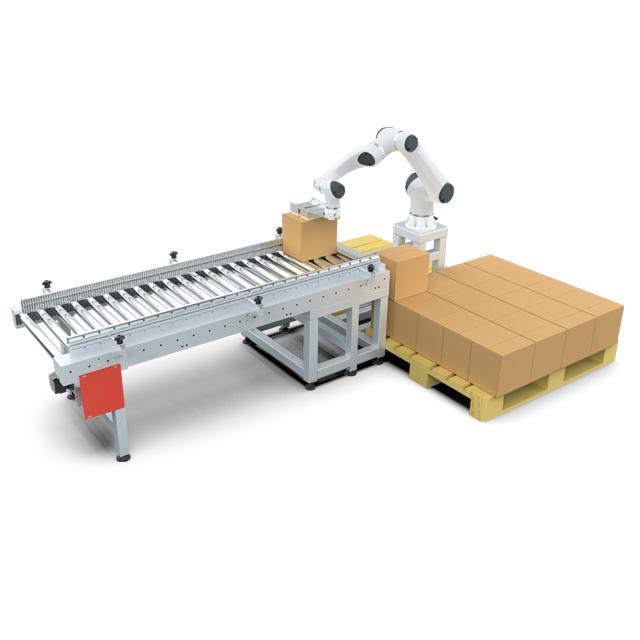

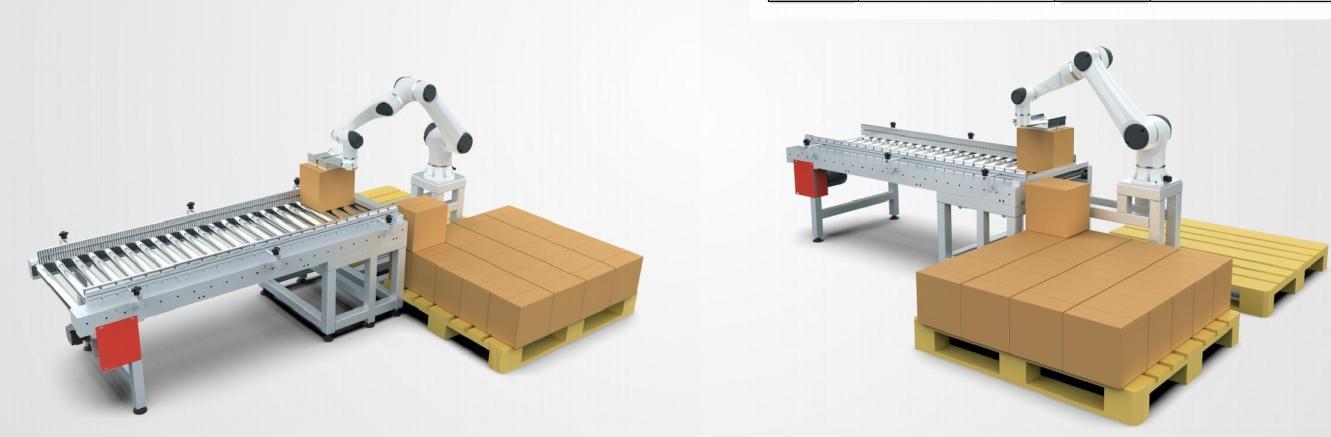

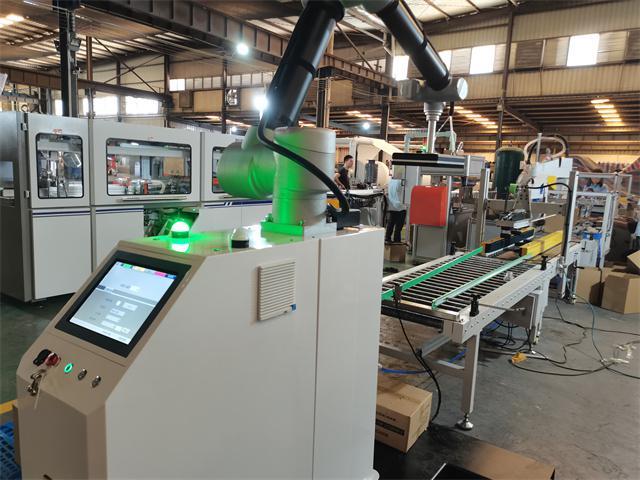

RP-10 Palletizing Machine Cooperative Robot Palletizer

Price: Negotiable
Model Number: RP-10
Power:
Application: boxes and bags
Weight: 20 Kg
Output: Stack up to 8 box/minute
Packaging dimension: Generally up to 1650mm
Place of Origin: CHINA.
Brand Name: IMAKO
Certification: CE, ISO
Minimum Order Quantity: 1 SET
Trading Method: FOB/CIF/EXW Xiamen Port
Delivery Time: 90 Days
Packaging logistics: In wooded cases with fumigation finish or wrapped with plastic film.

Get Quote

+86-15918973337

* Safety and stable
It can directly work side by side with human without using safety fence for isolation;
Support level 10 collision detection and sensor safety detection,with high reliability and safety;
Provides 16 secure I/O interfaces to ensure that security functions are not lost when a single fault occurs.
The terminal does not fall when power off, and the product is safe and stable;

* Flexible production
Quick switching of various functional scenarios, flexible production can be realized by human-machine collaboration, dual-machine collaboration, and multi-machine collaboration;

*Wide range of applications
Widely used in food, medicine, 3C, chemical, e-commerce and other industries;
* Easy to Use
The programming method can be mastered in half an hour, and simple programming can be completed in 1 hour;

* Cost effectively

The investment cost is recovered in an average of 6-12 months;

RP-10 main parameter configuration
Max. stack height *	The maximum stackable height is 2100mm (including tray); Generally up to 1650mm (including tray)
Max. allowable load	20kg
Fastest stack speed	Stack up to 8 box/minute
Co-working radius	Max. co-working diameter:1600mm
Security function	16 working unit level safety functions, safety level PL=d Passed ISO13849-1 third-party certification

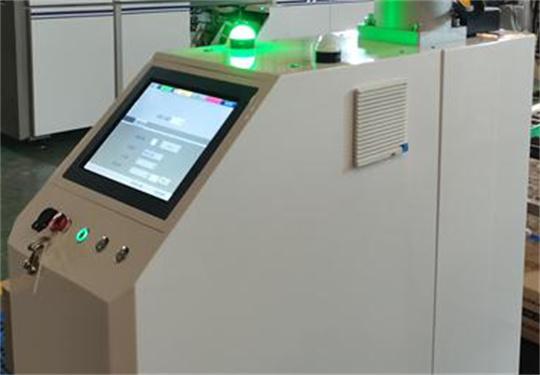

Demonstrator	10.1 inch capacitive touch screen with emergency stop and three-stage switch, Cable length: 3m, provides 2 USB interface
IP rating	Robot arm IP54, demonstrator IP65 Grippers and other accessories comply with IP32
Interface	Supports multiple safety inputs and outputs, Including emergency stop, safety protection, cooperation mode
Software	Offline editing and 3D simulation: TMstudio Palletizing Wizard Setup and execution: TM Palletizing Operator software package
Light status	When powered on normally, the indicator light is always red; When powered off, the indicator light is off

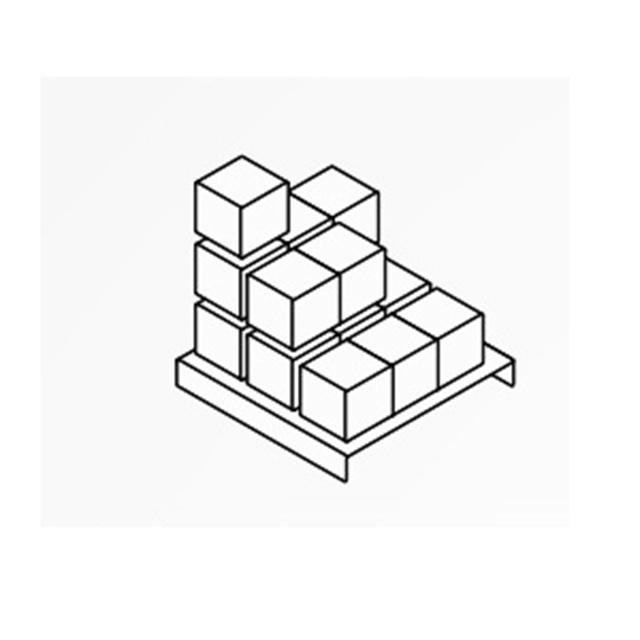

This machine is suitable for stacking boxes and bags in its specifications range.


Products Categories

Related Products

More》

Palletizing Machine Robot Palletizer Robot Palletizer Machine

RP-10 Palletizing Machine Cooperative Robot PalletizerMain Parts

1. Control system

The control system is the brain of the robot that manages all of the movements of the arm and gripper. It receives instructions from the central control system and interprets them to control the motors that move the arm and gripper.

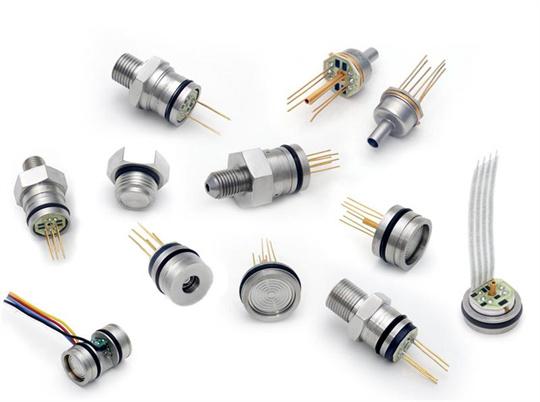

2. Sensors

The sensors are used to detect the presence and position of items on the pallet. They provide feedback to the control system to ensure that the arm and gripper are in the correct position to pick up or place items.

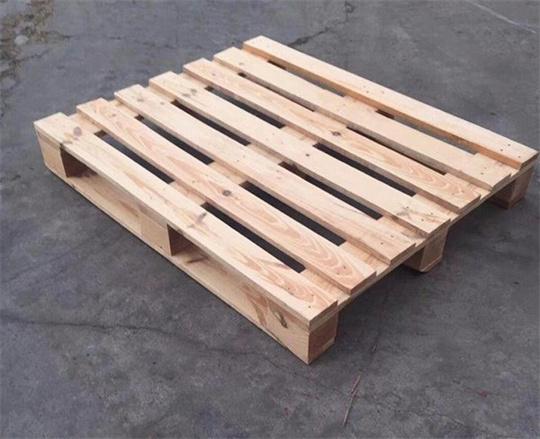

3. Pallet

The pallet is the platform on which items are placed for transport or storage. It is usually made of wood or plastic and is designed to be durable and easy to use.
